The Vega Technology Series delivers ultra‑stable illumination for precision camera testing at extremely short exposure times. Built on a DC‑driven LED architecture, the series includes Vega for the visible spectrum and Vega IR for 940 nm near‑infrared, enabling contrast‑based performance measurements according to IEEE-2020:2024 across both spectral ranges. The direct‑current LED driver ensures stable output, fine intensity control, and consistent thermal behavior, preventing color shifting and intensity fluctuations. This stability provides the reliability required for accurate CTA, CSNR, and other IEEE-2020:2024 measurements.
Vega & Vega IR
Key Benefits
DC-driven LED Technology
DC (direct current) technology does not affect temperature regulation and can achieve temperature stability within 0.5 degee.
IEEE-2020:2024 measurements
Measure most of the KPIs from the IEEE-2020:2024 standard, including CTA, CSNR, MMP, and dynamic range.
Extremely high stability
Vega's extremely high stability provides a very strong consistency for testing cameras with very short exposure times.
Eliminate color shifiting
Vega can eliminate color shifting through the meticulous selection of the LEDs.
Flicker testing
Vega has advanced flicker capabilities that can be generated from a wider frequency range.
Multiple waveforms
Advanced low-frequency functionality to include sine, triangular, and square waveforms to cover nearly all real-world scenarios.
Vega devices
Vega (Visible Spectrum)
Vega is designed for high‑precision visible‑light measurements under extremely short exposure times, particularly for automotive HDR cameras.

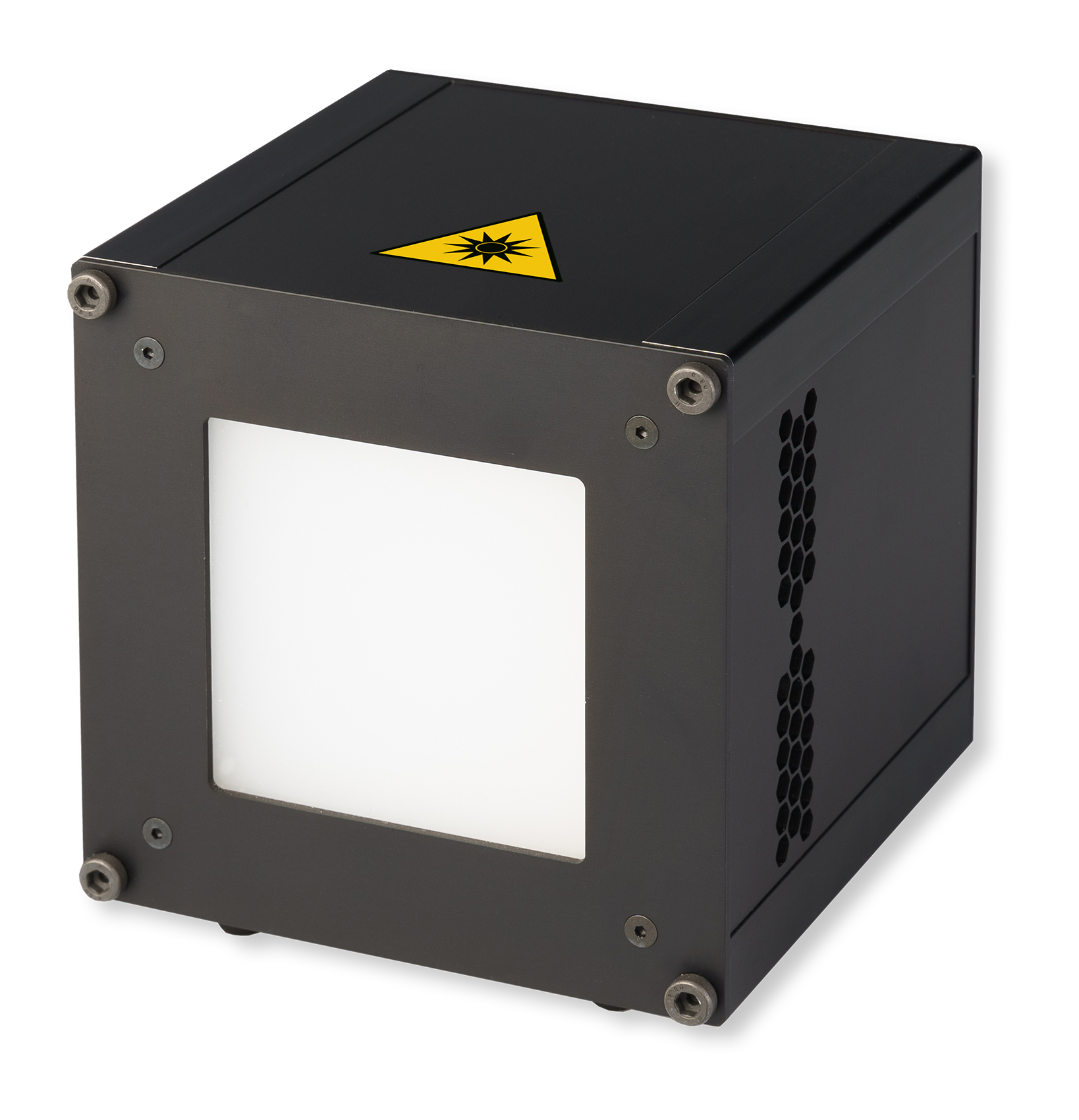

Vega IR (940 nm Near‑Infrared)
Vega IR extends the Vega platform into the near‑infrared band, enabling contrast‑based KPIs for cameras operating under 940 nm illumination (DMS, OMS, RGB‑IR sensors).

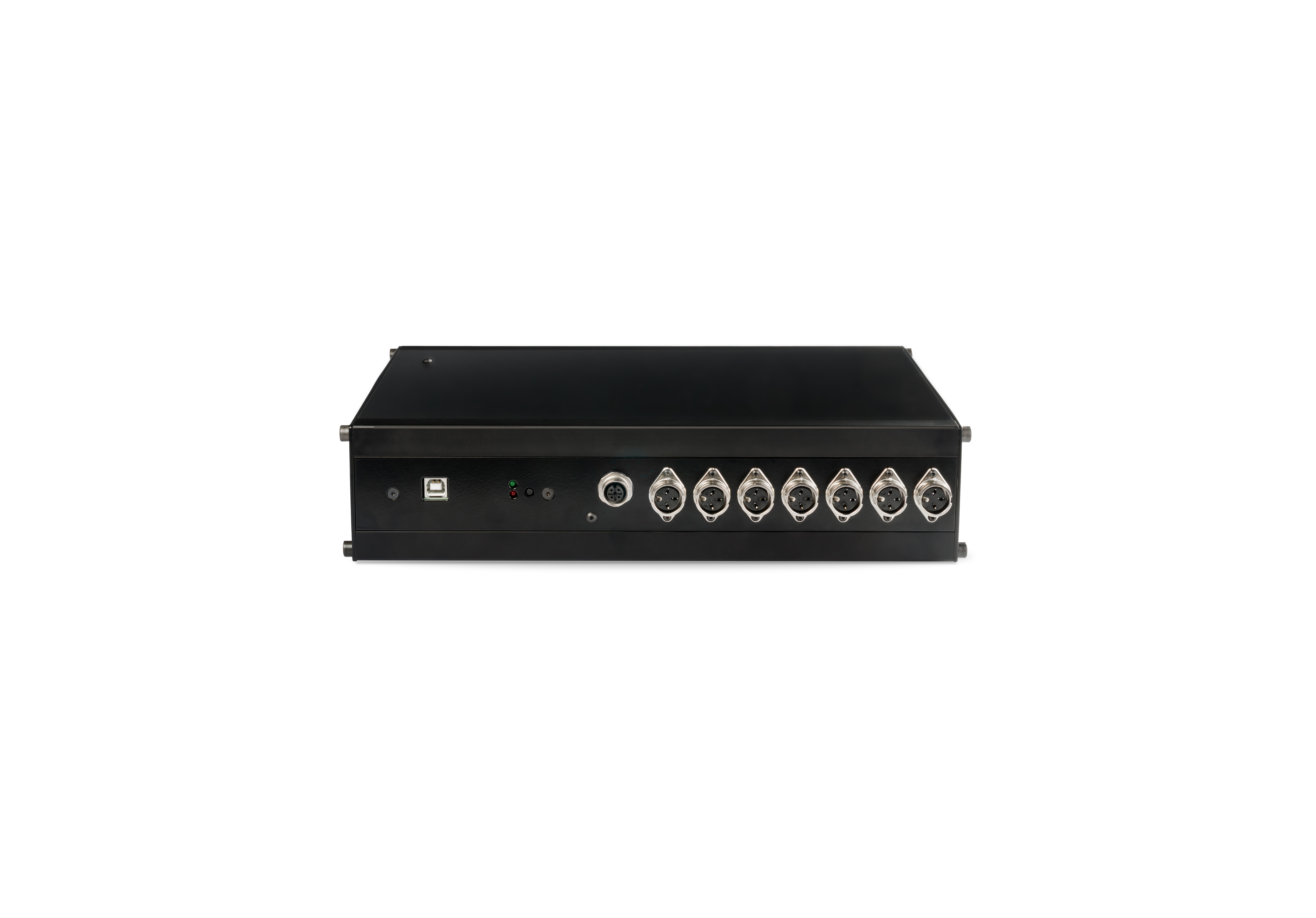

Lightcube-Controller
The Lightcube‑Controller delivers reliable power management and seamless control for all Vega and Arcturus illumination devices.
Use Case
IEEE-2020:2024 Measurements
Vega is an ideal solution for measuring Contrast Transfer Accuracy (CTA), Modulated Light Mitigation Probability (MMP), Contrast Signal-to-Noise Ratio (CSNR), or other high-intensity measurements outlined in the IEEE-2020:2024 standard. These factors are relevant to almost all automotive camera applications, which require test solutions capable of creating dynamic test scenes for cameras with very short exposure times.
Product Specifications
Looking for even higher intensity and stability? Check out our Arcturus light source.
Vega
Vega IR
Light Source
36 Temperature controlled LEDs based on iQ-DC technology
36 temperature-controlled IR-LEDs based on iQ-DC technology
Uniformity (active area)
> 95% at 100% output intensity
> 94% at 10% output intensity
> 90% at 1% output intensity
> 90% at 0.1% output intensity
> 95% at 100% power output
> 94% at 10% power output
> 90% at 1% power output
> 90% at 0.1% power output
Illumination stability
± 0,5%
± 0,5%
Correlated Color Temperature (CCT) VIS [K]
4900 K (± 200 K)
-
Peak Wavelength IR [nm]
-
940 nm (± 15 nm)
Color Rendering Index (CRI)
> 95
-
FWHM (Full Width Half Maximum) [nm]
-
< 50 nm
Minimum luminance
0.1 – 0.5 cd/m2
-
Maximum luminance [cd/m²]
55,500 – 61,500 cd/m²
-
Minimum radiance [μW/(cm²·sr·nm)]
-
≤ 1.0 μW/(cm²·sr·nm)
Maximum radiance [μW/(cm²·sr·nm)]
-
≥ 63,000 μW/(cm²·sr·nm)
Dim function
Software based | 106 - 10 steps
Addresable | 106 – 10 Steps
Flicker frequency range
1 – 1000 Hz (Square)
10 – 1000 Hz (Sine)
10 – 1000 Hz (Triangle)
-
Flicker frequency step width
0.1 Hz (1 – 200 Hz)
0.2 Hz (200 – 500 Hz)
0.5 Hz (500 – 1000 Hz)
0.1 Hz (1 – 200 Hz)
0.2 Hz (200 – 500 Hz)
0.5 Hz (500 – 1000 Hz)
Photometric vs. Radiometric Units
Modern camera testing uses two different measurement systems depending on the wavelength: photometric (for visible light) and radiometric (for infrared).
Photometric Units (Visible Light)
Vega
Photometric quantities describe light as perceived by the human eye. They apply only to wavelengths between ~380–780 nm.
Luminance (cd/m²): perceived brightness of a surface.
Illuminance (lx): perceived brightness falling onto a surface.
Photometric units weight light using the V(λ) curve, which models human visual sensitivity.
Radiometric Units (Infrared Light)
Vega-IR
Radiometric quantities describe physical optical power, independent of human perception. They apply to all wavelengths, including NIR (e.g., 940 nm).
Radiance (μW/(cm²·sr·nm)): optical power emitted per area, per solid angle, and per nanometer of wavelength.
Irradiance (W·m⁻²): optical power falling onto a surface.
Radiometric units are essential for IR camera testing because the human eye cannot see IR light, making photometric units meaningless.
Product Options and Software
We offer multiple setup options and control software
Vega software and APIs
Vega is sold with control software that lets you manage up to seven devices simultaneously. APIs are also available (sold separately) to enable seamless integration into individual designs. We offer APIs in C, C++, and Python.
VLS-Evaluation
The evaluation software analyzes the camera's performance using the defined KPIs, including CTA, MMP, and CSNR. CTA evaluations are based on pixel-value distributions. Results are exported as XML files. This software is sold separately.
Vega charts (TE294)
The TE294 chart is optimized for Vega. It is a unique series of grayscale test charts for high-precision measurements, including Contrast Transfer Accuracy (CTA) and other contrast-based performance indicators. Charts are available individually or in sets. Please note that the TE294 charts are always sold separately from the Vega light sources.
Vega IR Test charts
Vega IR is used with grayscale test charts selected for defined behavior in the near-infrared range. Please contact our sales team to confirm the chart configuration for your wavelengths.
Note:
As with the Vega light sources, you can purchase charts in one-, three-, or seven-piece sets.
