    The AEON Camera Calibrator

    The AEON Camera Calibrator

    Product Overview

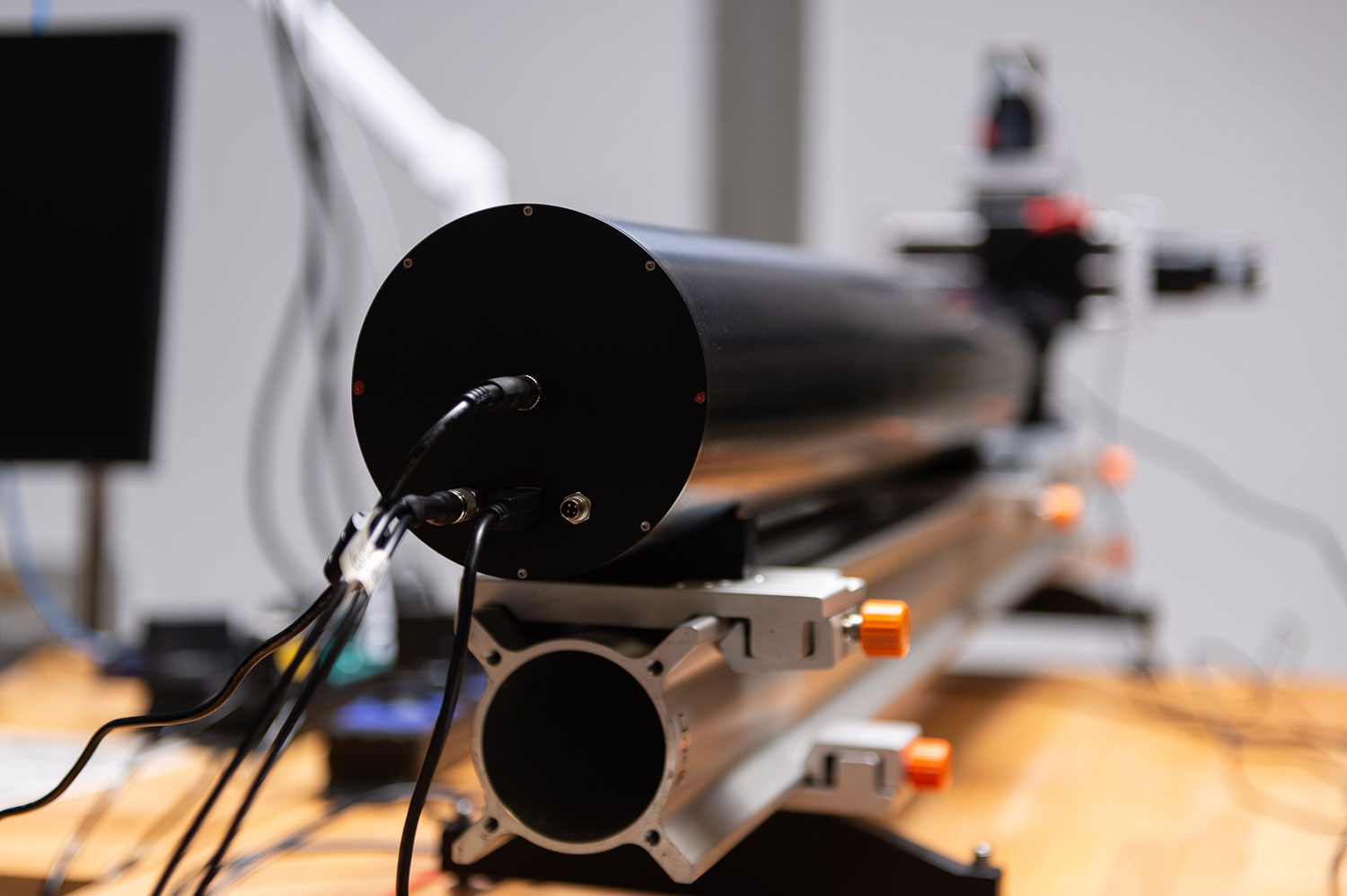

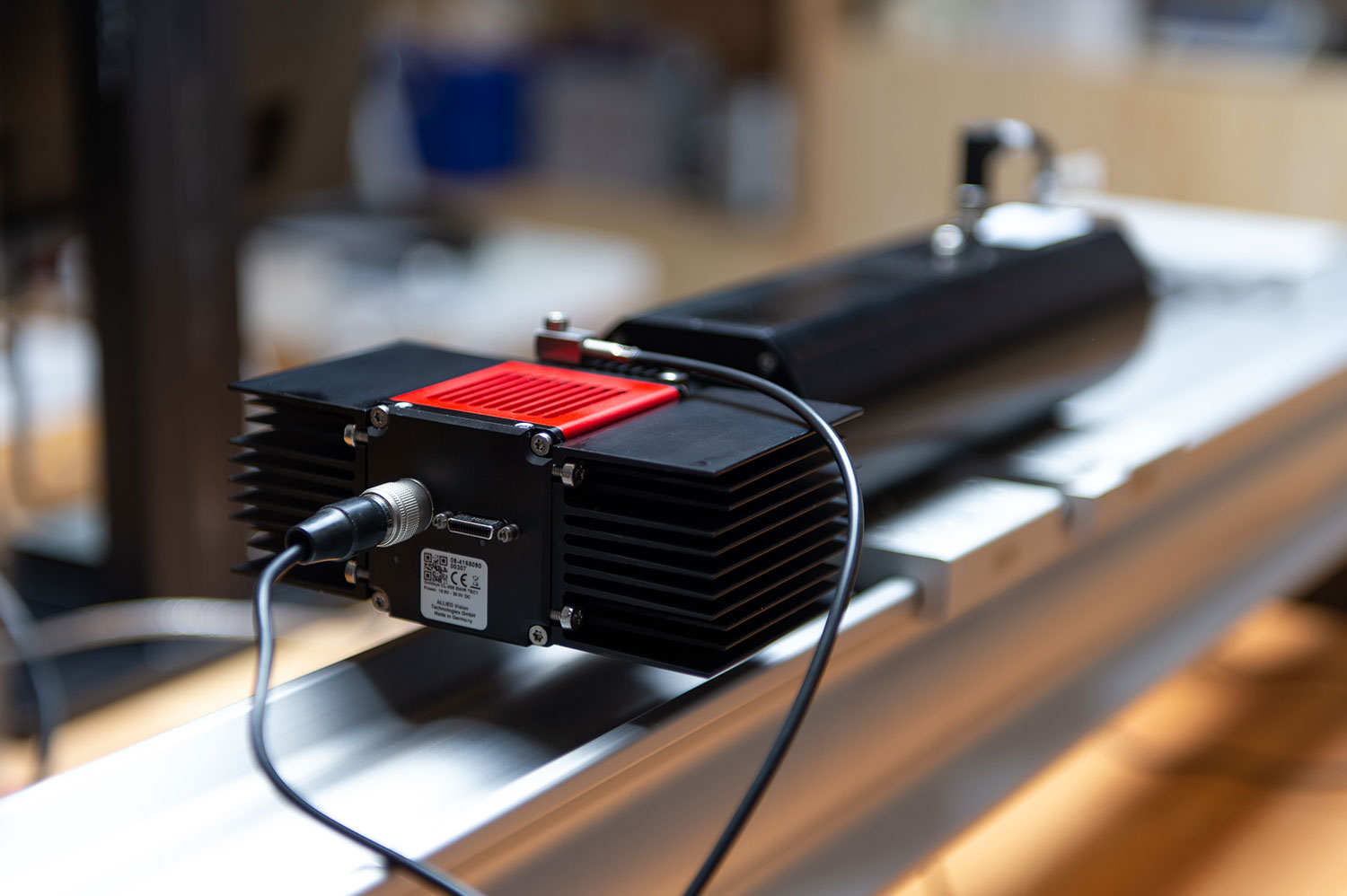

    The AEON Camera Calibrator (ACC) is a modular optical system designed to test machine vision cameras based directly on the measurement parameters outlined in the EMVA (European Machine Vision Association)1288 standard.

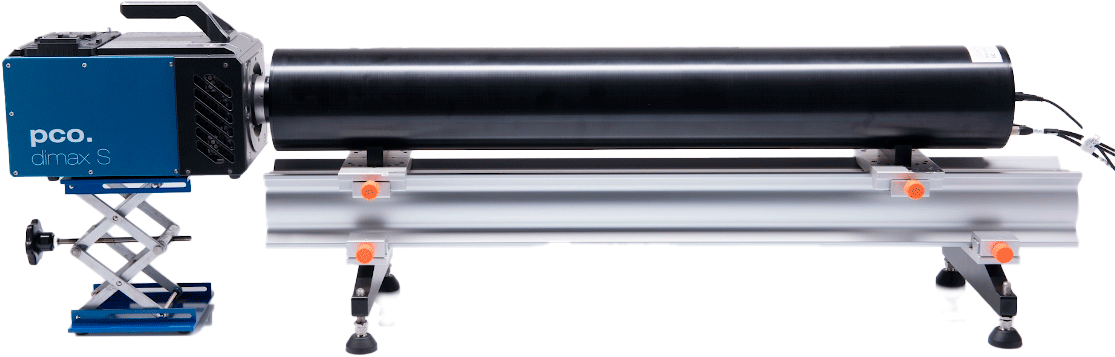

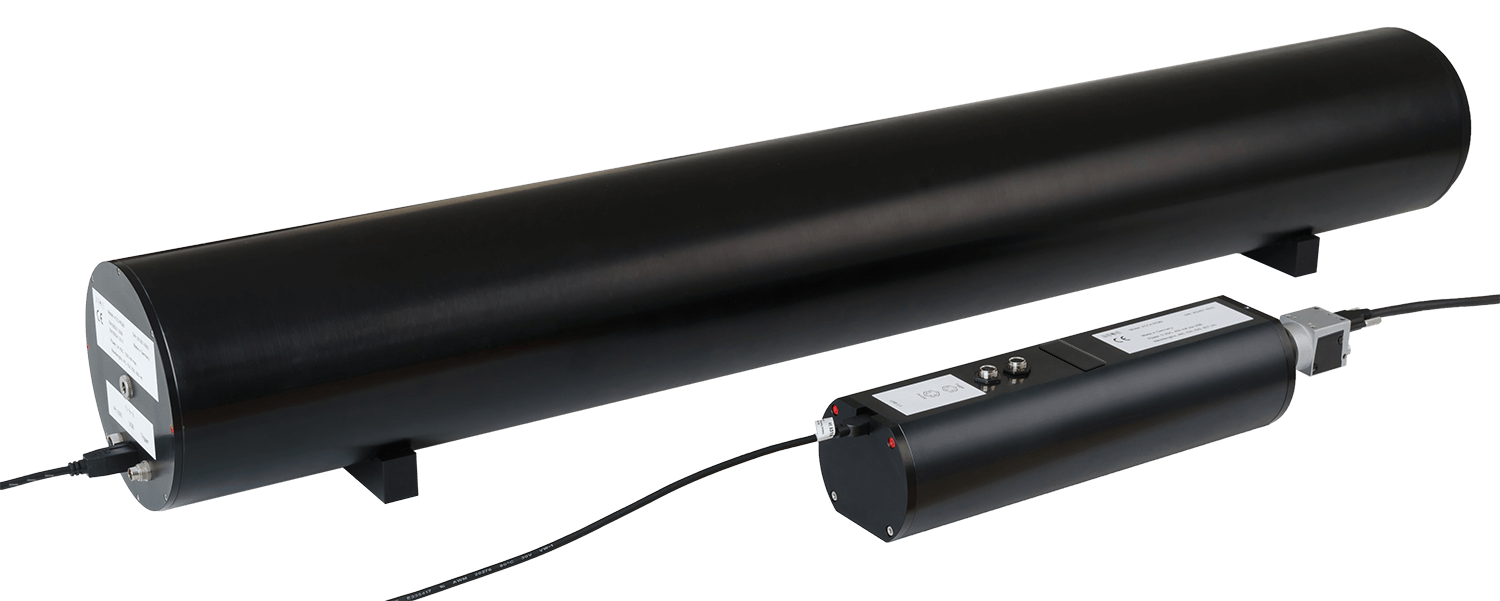

    The ACC is available in two sizes, one designed for standard sensors and another capable of handling sensors with diagonals up to 77 mm. Both configurations are modular, turnkey systems featuring adjustable LED light sources and comprehensive evaluation software powered by AEON's advanced heurisko® image processing platform*.

    The measurement process is fully automated once the configuration is set up. Upon completion, a datasheet can be generated automatically. The system also supports batch processing and seamless integration with other software environments.

    The ACC can conduct all measurements specified in EMVA 1288 (version 4.0), including linearity, noise, sensitivity, spatial inhomogeneities, and dark current.

    Supported camera interfaces include:

    • GigE Vision and USB3 Vision

    • All cameras of Imaging Development Systems (IDS) via IDS’ peak

    • All cameras of Basler via Basler’s pylon

    • Camera Link, Camera Link HS, CoXPress

    • and GigE Vision via Basler's frame grabbers

    • Camera Link via Teledyne Dalsa’s Sapera LT

    • CoaXPress via Euresys’ Coaxlink

    • Cameras of PCO

    We also offer customization to meet specific requirements wherever possible. For example, an ACC4 can be modified and mounted to the iQ-Climate Chamber.

    We recently entered into a strategic cooperation with AEON. Check out the details here.

    Please contact our sales department to get started with the ACC.

    * A heurisko® developer license is included in the system.

    Key Benefits

    EMVA 1288/ISO 24942

    Machine vision camera measurements according to the standards.

    Available in two sizes

    Evaluate standard sensors and sensors with diagonals up to 80 mm.

    Automated testing

    The measurement process is fully automated once the configuration is set up.

    EMVA 1288 meausements

    Standard measurements, including linearity, noise, sensitivity, spatial inhomogeneities, and dark current.

    Customization options

    We offer customization to meet specific requirements whenever possible.

    Cooperation with AEON

    We work closely with our partners at AEON to provide machine vision measurements.

    EMVA 1288 Measurements

    The ACC can conduct all of the measurements specified in EMVA 1288 (version 4.0).

    Linearity, Noise, and Sensitivity

    These measurements are performed with monochromatic green light for monochrome cameras and blue, red, and green light for color cameras.

    Spatial Inhomogeneities

    Analyze spatial inhomogeneities of dark images and sensor sensitivity. The mean and the variance of each individual pixel are computed by averaging up to 1000 images.

    Dark Current

    Determine the dark current by capturing multiple images at different exposure times without illumination.

    Test Results

    From these measurements, the following results can be derived:

    • Absolute gain factor K in electrons per digits

    • Absolute sensitivity threshold and saturation capacity

    • Maximal signal-to-noise ratio

    • Dark noise

    • Dynamic range

    • Non-Linearity

    • Spatial inhomogeneity of the dark image (dark signal non-uniformity, DSNU) and of the sensitivity (photo response non-uniformity, PRNU)

    • Quantum efficiency at the wavelengths of the ACC light source

    Test results are available in PDF or CSV format. Images of the DSNU and PRNU are provided in PNG format. All essential intermediate results are stored for repeated evaluation.

    Technical Specifications

    ACC
    ACC2
    ACC4
    Largest Sensor
    77 mm
    18 mm
    Standard camera adaptors
    S, CS, C, Nikon F Others on request
    S, CS, C
    Standard light source
    Pulsed, current-controlled LEDs 4 or 8 colors, two intensity levels or 14 colors, one intensity level Ø 84 mm, exchangable
    Pulsed or current controlled LEDs 4 colors, one intensity level Ø 21 mm, not exchangeable
    Calibration
    Split optical path with built-in calibrated photodiode
    Split optical path with built-in calibrated photodiode
    Usable cameras
    Linear/non-linear, monochrome/color/multispectral, area/line cameras
    Linear/non-linear, monochrome/color/multispectral, area/line cameras
    Wavelengths
    Examples for standard configurations 8-color model: 365, 405, 455, 530, 625, 725, 850, 940 nm 14-color model: 405, 415, 425, 460, 480, 500, 530, 590, 610, 625, 660, 690, 725, 750 nm Other wavelength combinations on request (range 365 - 1550 nm, white)
    Examples for standard configurations VIS-NIR: 455, 520, 630, 850 nm SWIR: 1050, 1200, 1300, 1550 nm Other wavelength combinations on request (range 365 - 1550 nm)
    For increased dynamic range measurements
    M82 thread for neutral filter
    Tray for easy insertion of neutral or polarization filters
    Overall dimensions (LxWxH)
    935 x 130 x 140 mm
    298 x 79 x 65 mm
    Control interface
    USB 2.0
    USB 2.0
    External power supply
    DC voltage up to 48 VDC depending on model and design
    None (5 VDC, 450 mA via USB)

    Documentation

    Download technical specifications and other important documents.
