The QA-62 comprises twenty patches to determine the OECF for linearization and noise data. The chart evaluates a digital system's Spatial Frequency Responses (SFR) using the two horizontal and two vertical slanted edges.
The QA-62 is supported by the iQ-Analyzer-X image evaluation software.
For more detailed information, please refer to the datasheet.

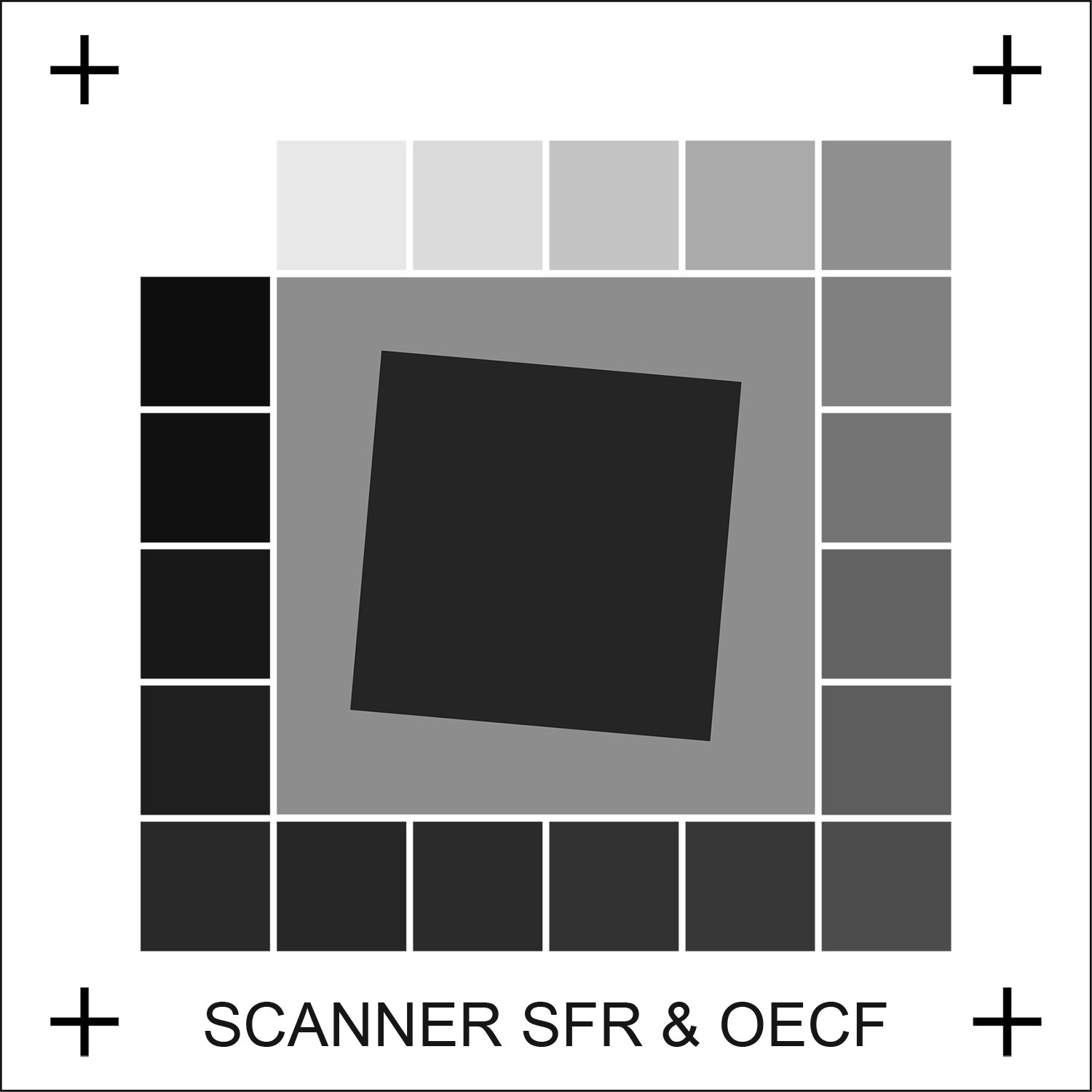

*The exact layout and dimensions may differ from the illustration above.
