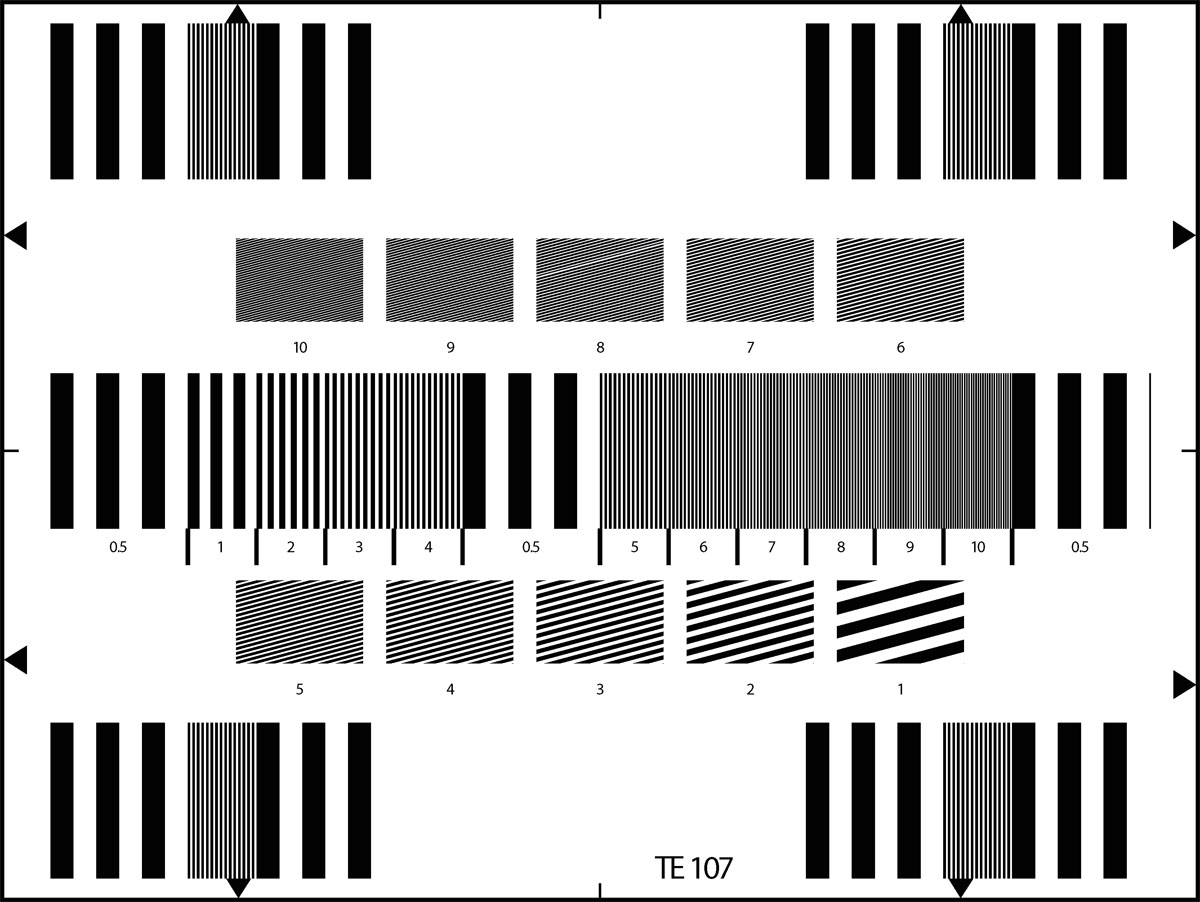

The TE107 is designed for checking the frequency response and the uniformity of an electronic camera. A line raster is arranged in the center of the test chart which produces frequencies of 0.5 to 10 MHz in the output of the TV camera.
*The exact layout and dimensions may differ from the illustration above.
