The TE116 is designed for the operational adjustment and control of HDTV cameras. It consists of circles permitting rough visual appraisal of scan linearity. Lines serve the purpose of adjusting registration and wedges serve the purpose of resolution appraisal. designed for the quick (mainly visual) appraisal of HDTV camera´s transmission characteristics. It consists of a gray background on which circles, gray scales, horizontal and vertical lines are positioned.

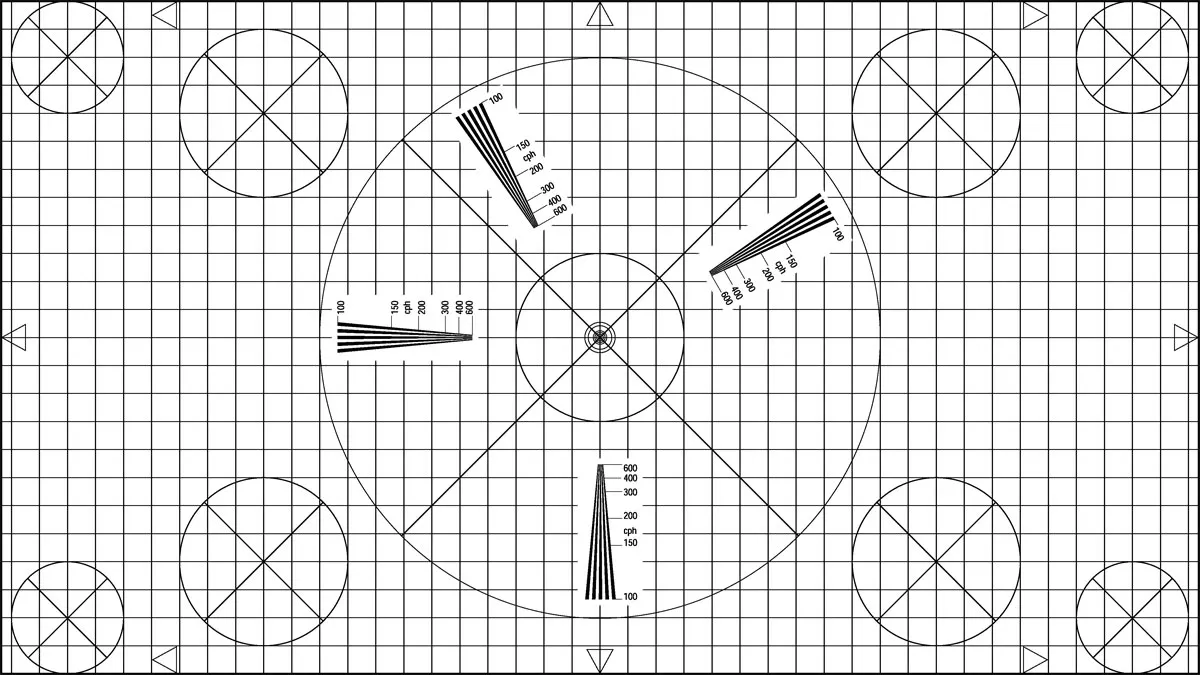

*The exact layout and dimensions may differ from the illustration above.
