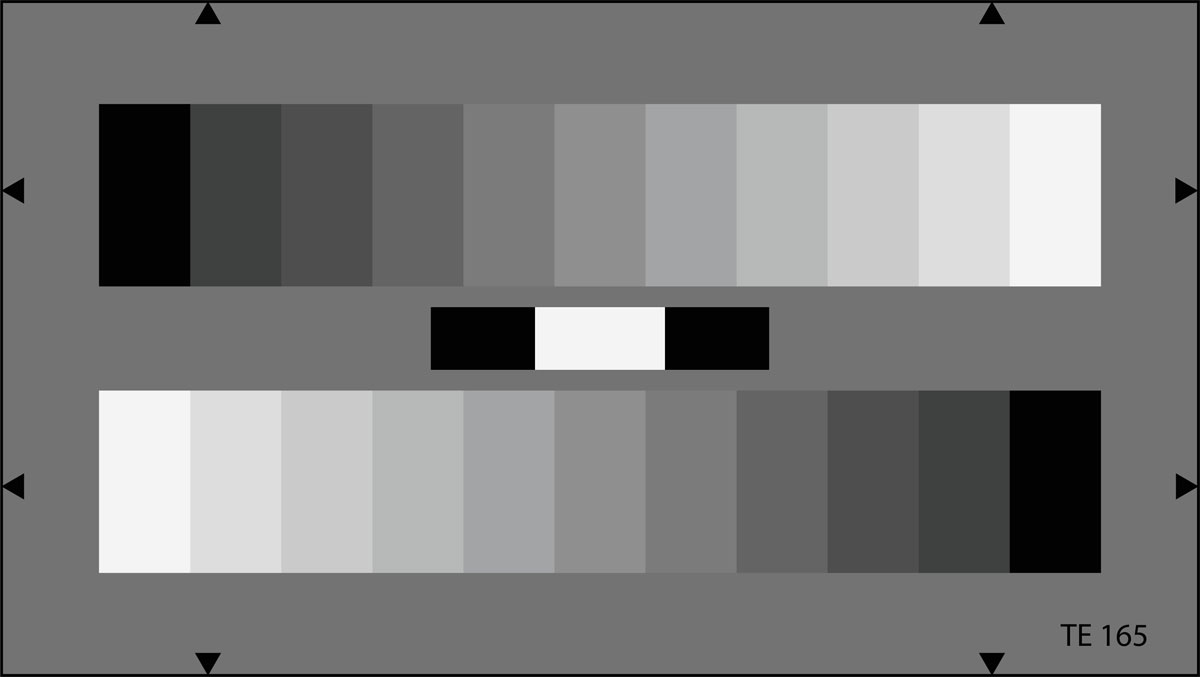

The TE165 is designed for evaluation the halftone reproduction of 16:9 electronic cameras. Two 11-graduated counter current gray scales are arranged on a gray background. The gray scales being graduated logarithmically. The contrast range of the gray scales is 40:1. The TE165 is supported by the iQ-Analyzer-X image evaluation software. *The exact layout and dimensions may differ from the illustration above.
For more detailed information, please refer to the datasheet.
