TE253 9x

Modulated Sinusoidal Siemens Star

Available
Request quote
Download datasheet
  • TE253_9x_data_sheet
  • TE253_Acceptance_Protocol_EXAMPLE

Gallery

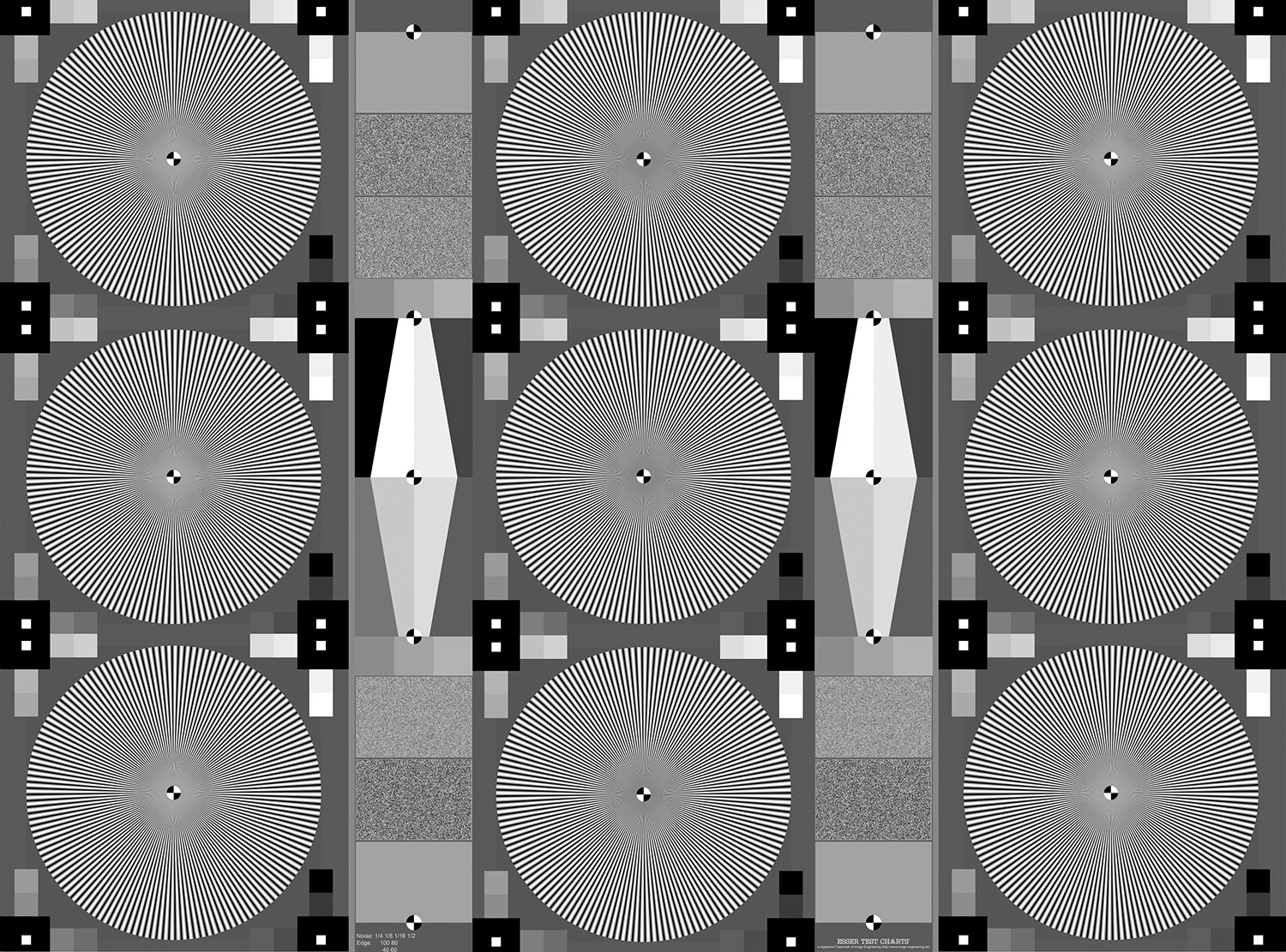

The TE253 is designed for checking resolution. The chart contains nine radially sine modulated Siemens stars, gray patches, black squares with a small white square in it, slanted edges and white noise patches.

TE253 9x is available in the following sizes and variants:

A1066 (reflective)

H - 144 cycle stars for cameras between 8 and 180 megapixels sample rate

S - 144 cycle stars for cameras between 2 and 30 megapixels

L - 72 cycle stars for cameras between VGA and 2 megapixels A460 (reflective)

H - 144 cycle stars for cameras between 2 and 35 megapixels

L - 72 cycle stars for cameras between VGA and 2 megapixels

D35 (transparent)

144 cycle stars for cameras between 2 and 10 megapixels (please see datasheet for details)

The TE253 9x is supported by the iQ-Analyzer-X image evaluation software.

*The exact layout and dimensions may differ from the illustration above.

Application areas

  • Automotive
  • Drone
  • Machine Vision
  • Medical & Endoscopy
  • Mobile Phone
  • Photo & Video
  • Surveillance
  • Webcam
