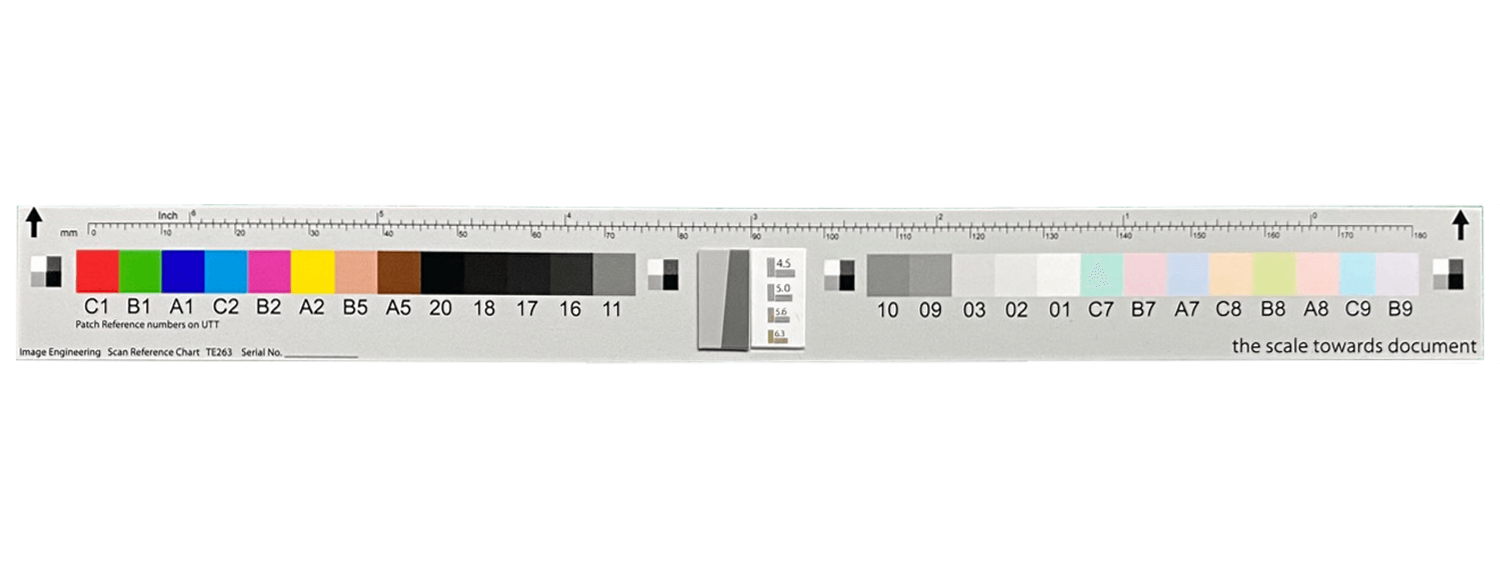

The chart consists of gray steps, color patches, a scale and resolution pattern. It allows automatic analysis of each scanned page and, in combination with the right software, provides information for the purpose of showing when a specific page happens to be out of specs.
TE263 is supported by the iQ-Analyzer-X image evaluation software.
*The exact layout and dimensions may differ from the illustration above.
