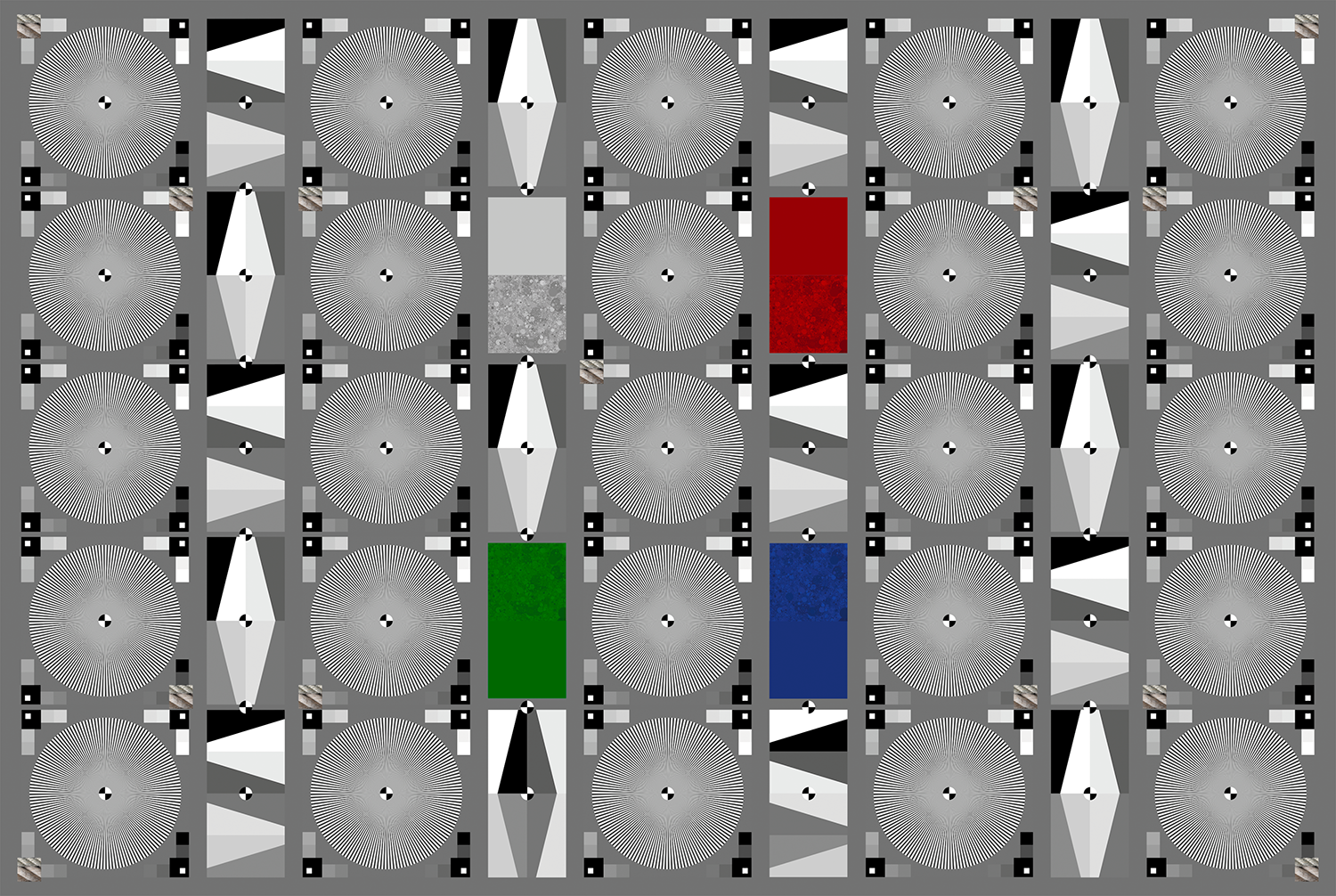

The TE268 is designed for resolution and sharpness measurements. 25 sinusoidal modulated Siemens stars, 16 slanted edges at four different contrasts, four colored dead leaves structures and rope structure images are placed on the chart. A very detailed analysis over nine different image heights is possible with this chart. The chart has an aspect ratio of 4:3 or 3:2. It is suitable for systems from 2 MP up to 180 MP. The TE268 is supported by the iQ-Analyzer-X image evaluation software.
*The exact layout and dimensions may differ from the illustration above.
