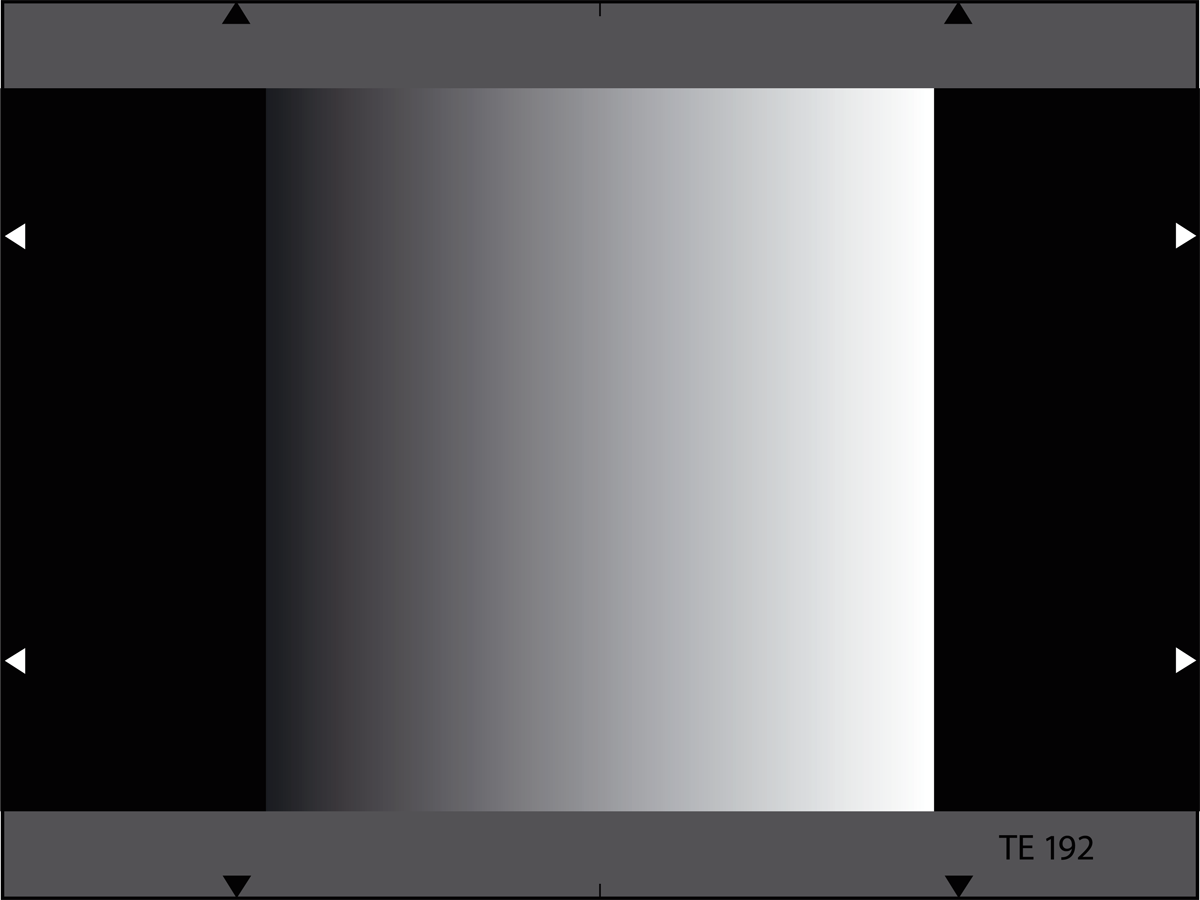

The TE192 is designed for cameras without an integrated electronic saw tooth signal. It allows the gamma correction of the camera to be visualized on the oscilloscope. It shows a linear continuous progression from 0% to 100% transmission set on a gray background.
*The exact layout and dimensions may differ from the illustration above.
