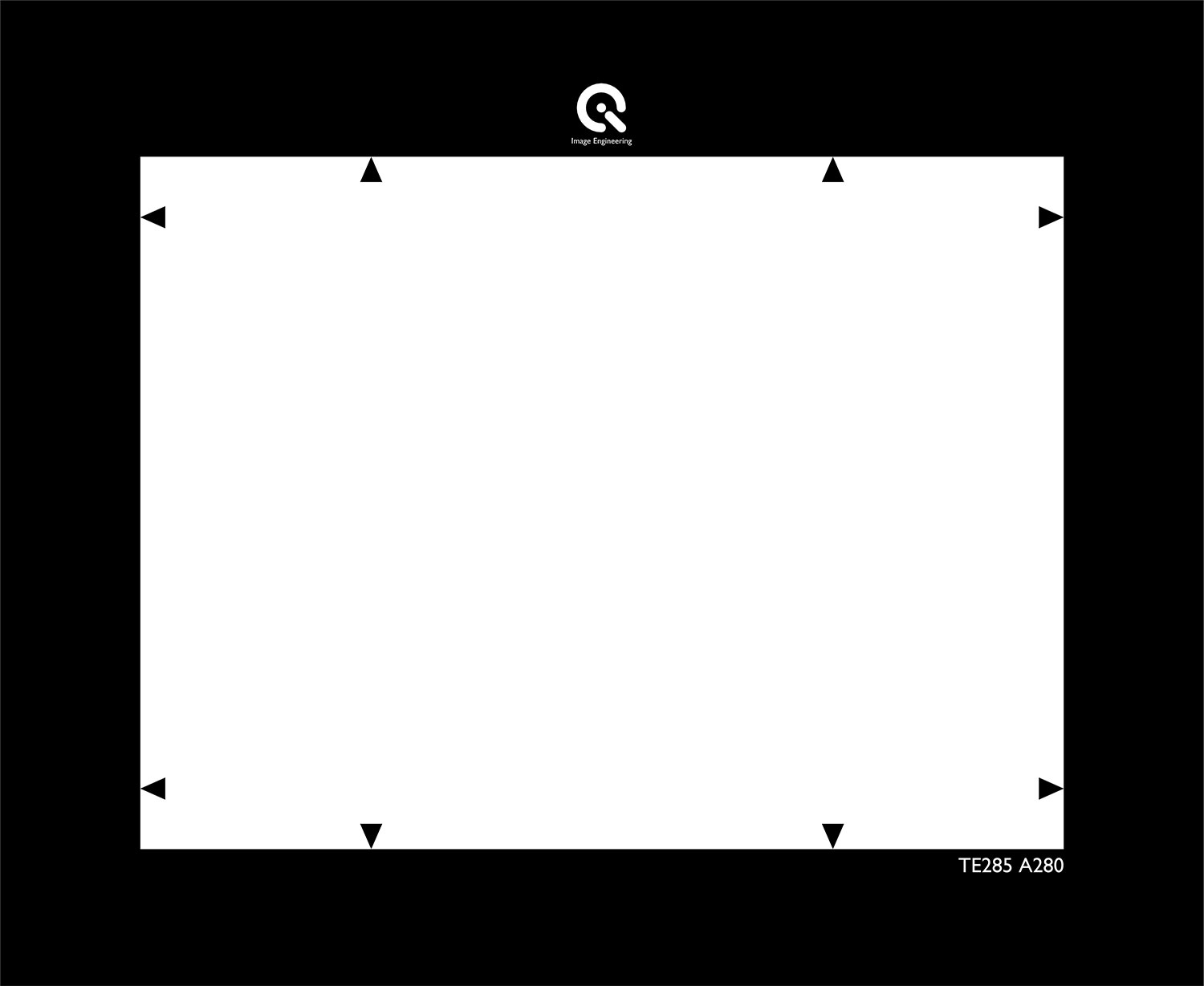

The Infra-Red Illumination Operating View Distance is a measurement described in the IEC 62676-5 standard. Thist standard is for video surveillance systems for use in security applications - Part 5: Data specifications and image quality performance for camera devices. This measurement is for cameras with built-in Infra-Red (IR) illuminators for the indication of the distance between a camera and an object to obtain specified video output level only using an Infra-Red (IR) illuminator. *The exact layout and dimensions may differ from the illustration above.
TE285
TE285IEC 62676-5 based test chart for the evaluation of the Infra-Red Illumination Operating View Distance
Combined 4:3 & 16:9
Reflective
Automotive
Photo & Video
Surveillance
Machine Vision
