    The test charts are available in the sizes listed below. Please note that some charts cannot be manufactured in all sizes due to technical reasons. Please do not hesitate to ask for additional information.

    During production, specific regions of test charts are measured to qualify the production process or to create individual reference data accompanying a test chart additionally. Measured regions can be color or gray tones.

    The measurement devices are calibrated regularly and proven before use. You can find further information in our reference data accuracy sheet.

    Reference data accuracy of our test charts

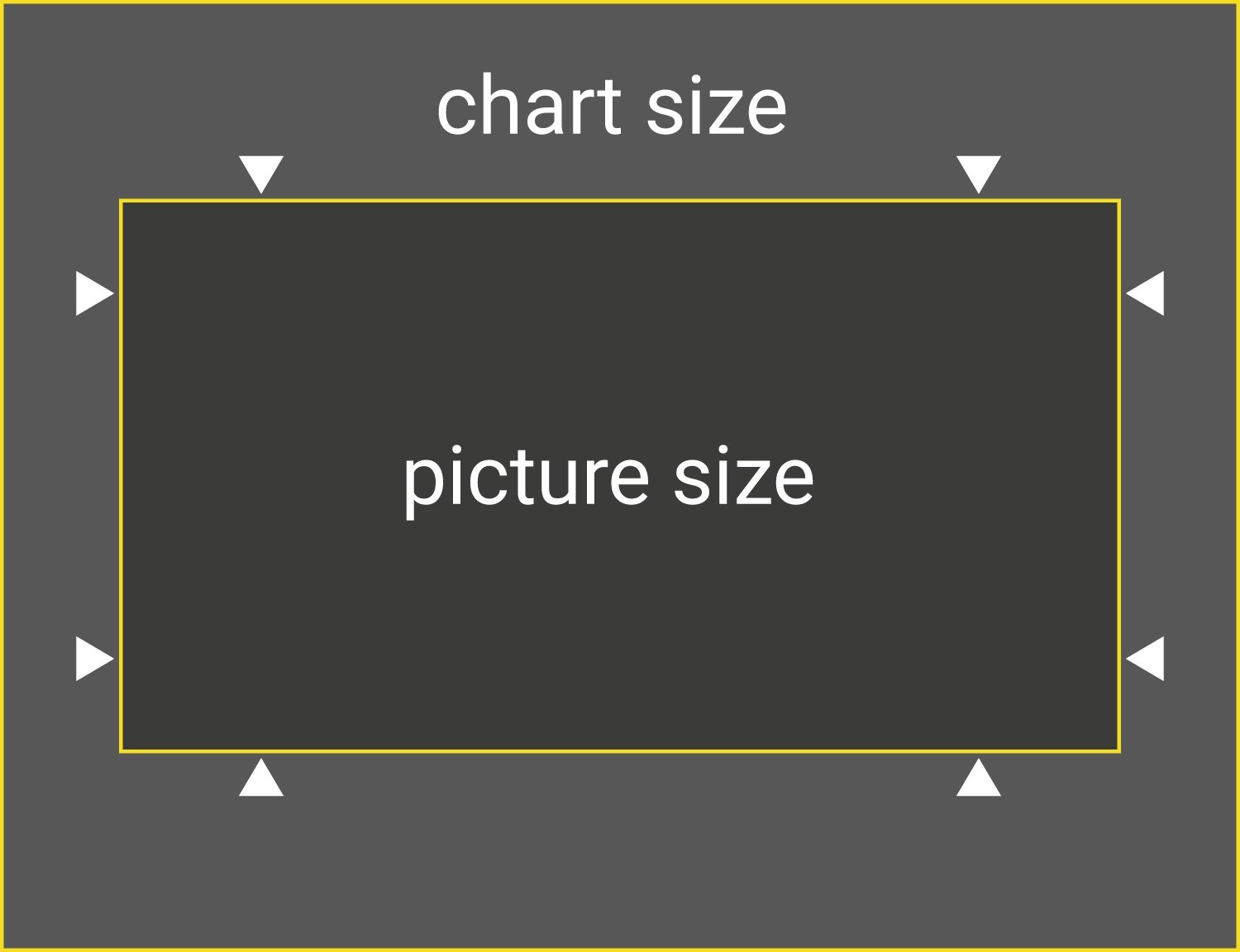

    Graphic explaining chart size versus picture size.

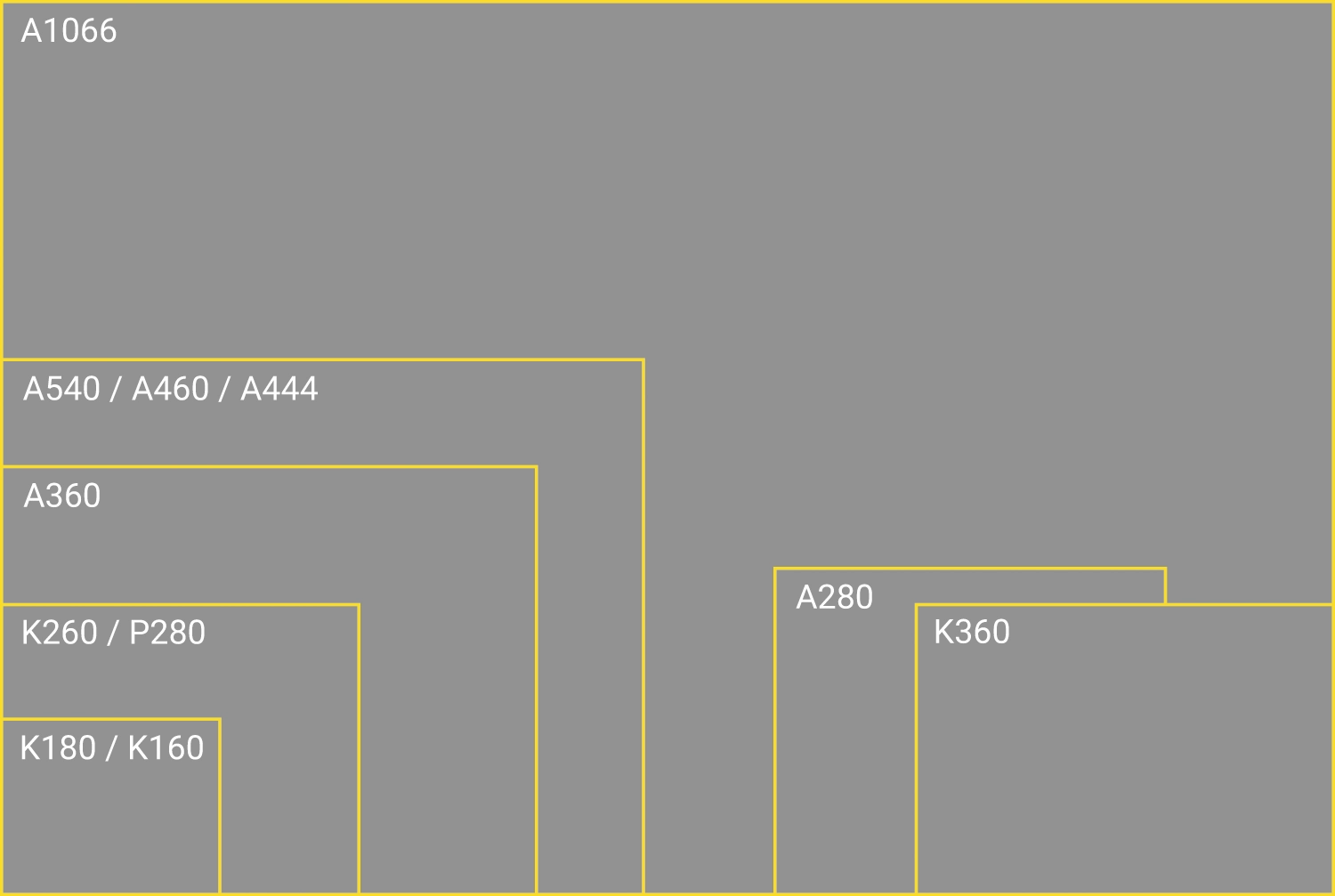

    Reflective

    Chart Size Name
    Picture size* w x h [mm] 4:3
    Picture size* w x h [mm] 16:9
    Chart Size** w x h x d [mm] (+/- 2 mm)
    A1066
    800 x 600
    -
    1245 x 835 x 3.2
    A1066 (TE42¹)
    900 x 675
    -
    1245 x 835 x 3.2
    A1066
    -
    1066 x 600
    1400 x 835 x 3.2
    A1066 (TE42¹)
    -
    1200 x 675
    1400 x 835 x 3.2
    A540
    540 x 405
    540 x 303.75
    600 x 500 x 3.2
    A460
    460 x 345
    460 x 258.75
    600 x 500 x 3.2
    A444
    -
    444.4 x 250
    600 x 500 x 3.2
    A360
    360 x 270
    360 x 202.5
    500 x 400 x 3.2
    K360
    -
    360 x 202.5
    390 x 271 x 2.1
    A280
    280 x 210
    280 x 157.5
    365 x 305 x 3.2
    K280
    280 x 210
    280 x 157.5
    334 x 271 x 2.1
    P280
    May vary in size with the chart layout
    May vary in size with the chart layout
    334 x 271 x 2.1
    K180
    -
    180 x 101
    204 x 164 x 2.1
    K160
    160 x 120
    -
    204 x 164 x 2.1

    Legend

    A charts (size 280/360/460) are mounted on aluminium plates.

    A charts (size 1066) are mounted on aluminum composite panels (aluminum dibond).

    K charts mounted on black polystyrene plates are only available in combination with the test chart folders

    P charts are mounted on black polystyrene plates.

    *Picture size format can vary from the default size. Individual deviation is stated on the specifc product page.

    **Chart sizes may vary by +/- 2 mm as they are handmade in house.

    1Sizes are for all variations of the TE42 chart series, including TE42 V2, TE42-LL, TE42-LL Timing

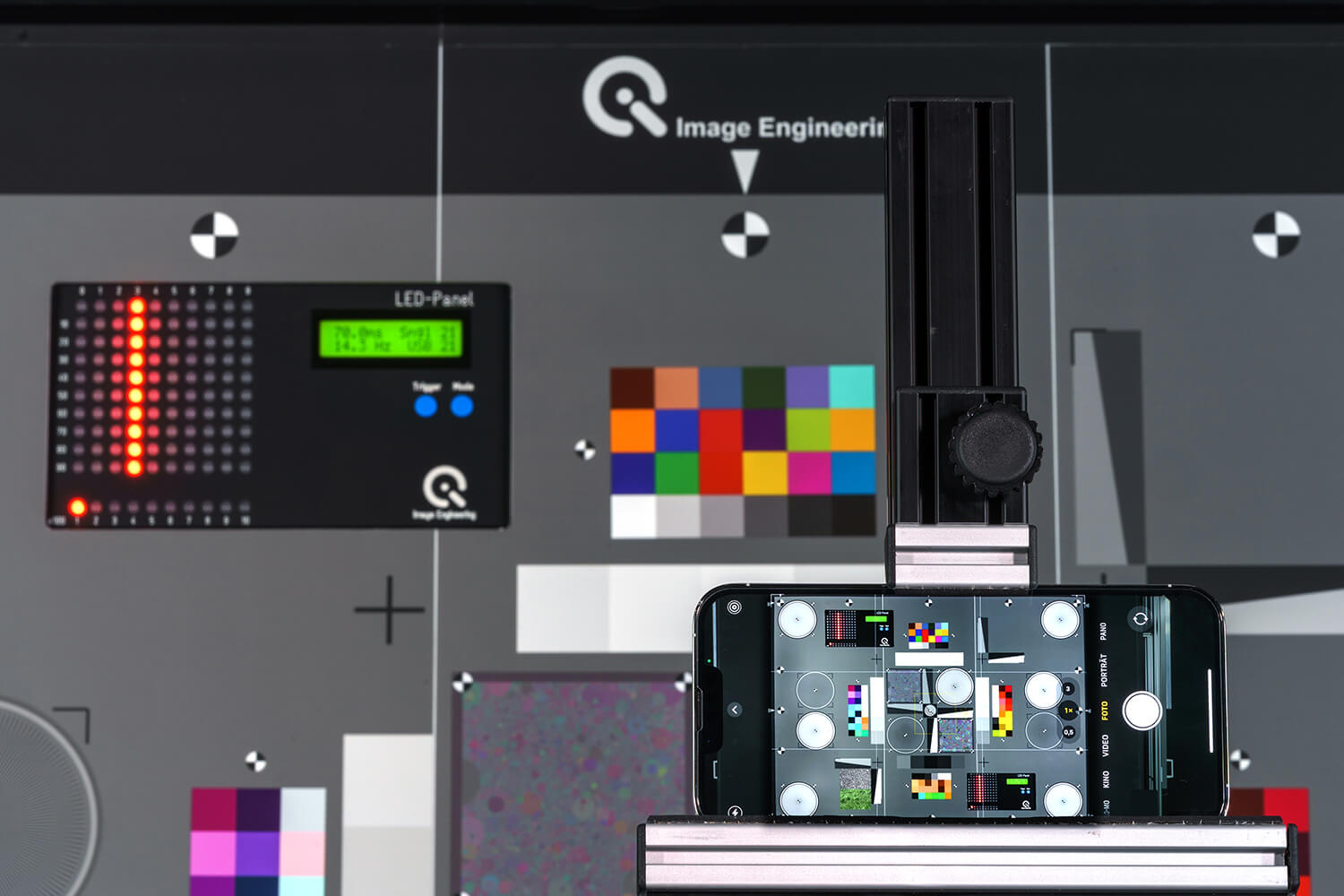

    Chart Sizes

    Chart Sizes Reflective

    Transparent

    Chart Size Name
    Picture size* w x h [mm] 4:3
    Picture size* w x h [mm] 16:9
    Chart size** w x h x d [mm] (+/- 2 mm)*
    D280
    280 x 210
    280 x 157.5
    360 x 280 x 4.6
    D240
    240 x 180
    240 x 135
    320 x 290 x 4.6
    D240S
    240 x 180
    240 x 135
    360 x 280 x 4.6
    D205
    205 x 153
    205 x 115.3
    253 x 202 x 3.5
    D120
    120 x 90
    120 x 67.5
    155 x 135 x 4.0
    D60
    60 x 60
    -
    100 x 100 x 4.5
    D35
    32 x 24
    -
    50 x 50 x 3-4

    Legend

    D60 charts are intended to be used with the Vega light source and are constructed with aluminum, PLA plates, and a magnet mount. .

    D35 charts are either between glass plates or mounted in slide frames (glassless).
    There are exceptions regarding mounting and size for special charts.

    *Picture size format can vary from the default size. Individual deviation is stated on the specifc product page.

    **Chart sizes may vary by +/- 2 mm as they are handmade in house.

    Chart Sizes

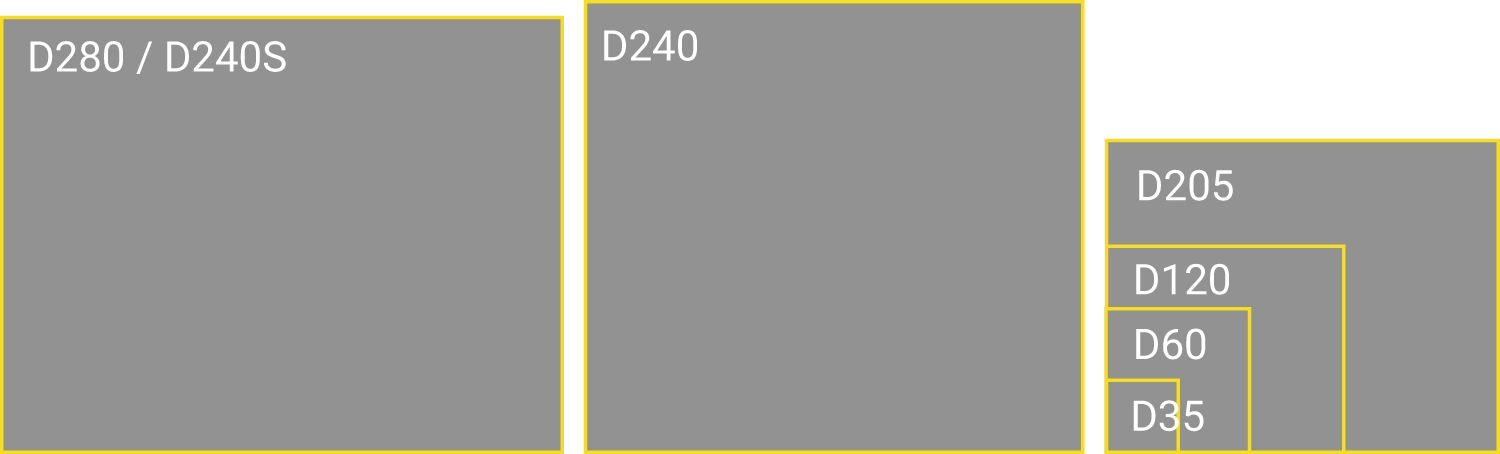

    Chart Sizes Transmission

    Suitable transparent charts for the following illuminators

    D280/D240S
    D240
    D205
    D60
    D35
    Spherical transparency illuminator LE7 Lightbox illuminator LG3/LG4 Sony Pattern Box
    DNP standard viewer
    Porta Pattern spherical transparency illuminator
    Vega
    CAL4
    With adapter
    Spherical transparency illuminator LE6/LE7 Lightbox illuminator LG3/LG4
    Spherical transparency illuminator LE6/LE7 Lightbox illuminator LG3/LG4
    LE6 and LE7

    National and international standards

    Except where otherwise indicated our test charts fit the technical requirements of EBU, ITU, EIAJ, ITE and of camera manufacturers. Where test charts were measured and approved by broadcasting corporations or other institutions, these are noted. With standardized test charts, the standard is indicated. The most important standards are:

    • Pflichtenheft 8/1.1 -Richtlinien für die Messung der Pflichtenheftsbedingungen an Videogeräten

    • IEC 61146 Video Cameras (PAL/SECAM/NTSC) - Methods of Measurement

      1. Non-broadcast single-sensor cameras

      2. Two and three-sensor professional cameras

      3. Non-broadcast camera-recorders

      4. Automatic functions of video cameras and camera-recorders

    • IEC 61966 Multimedia systems and equipment - Color measurement and management - Part 8: Multimedia color scanners

    • EN 50132-2-1 CCTV surveillance systems for use in security applications

    • ISO 12233 Photography-Electronic still picture cameras-Resolution measurement

    • ISO 14524 Photography-Electronic still picture cameras - Methods of measuring optoelectronic conversion functions

    • ISO 15739 Photography-Electronic still-picture imaging - Noise measurements

    • ISO 21550 Electronic scanners for photographic images - Dynamic range measurements

    • DIN 19045-1 Projektion von Steh- und Laufbild - Projektions- und Betrachtungsbedingungen

    • DIN 19051-2 Testvorlagen für die Reprographie
